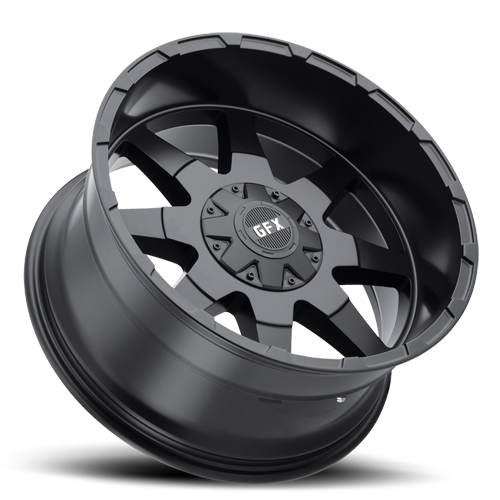

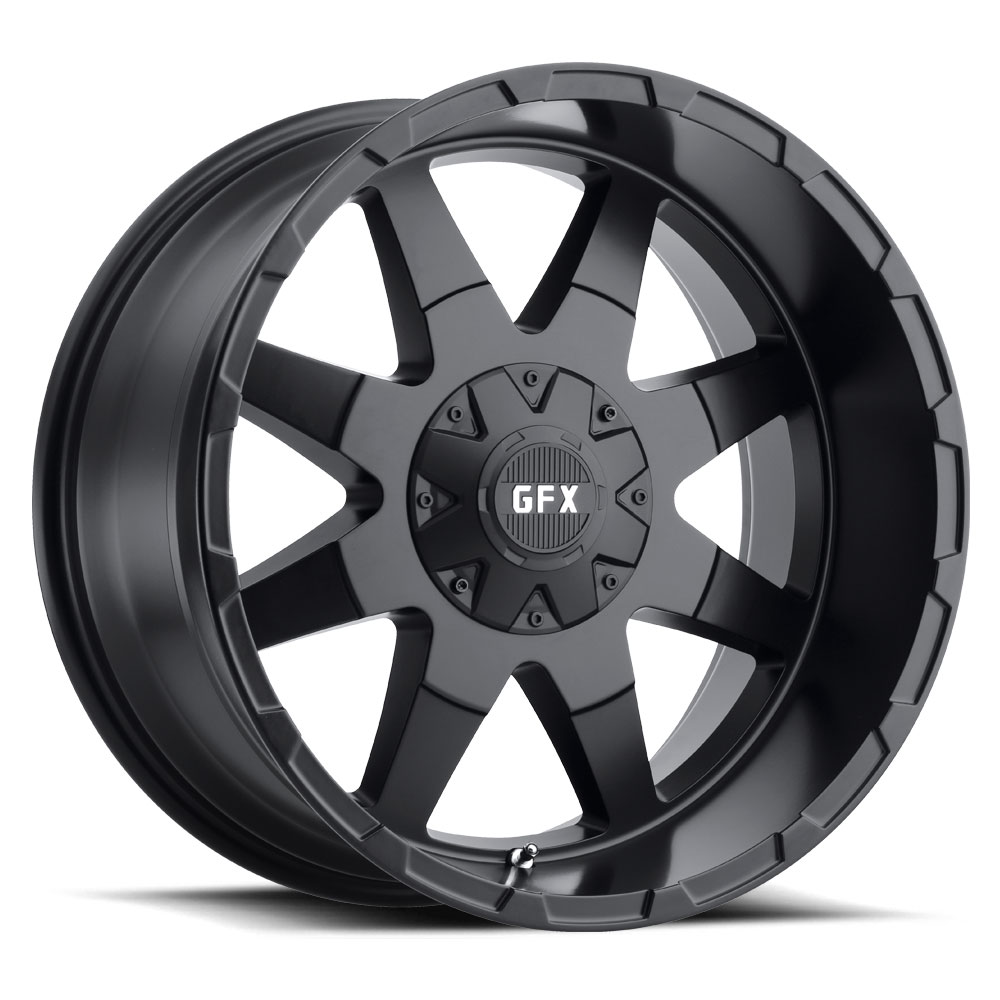

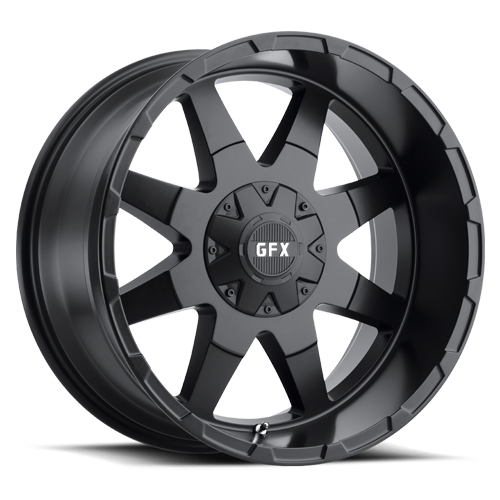

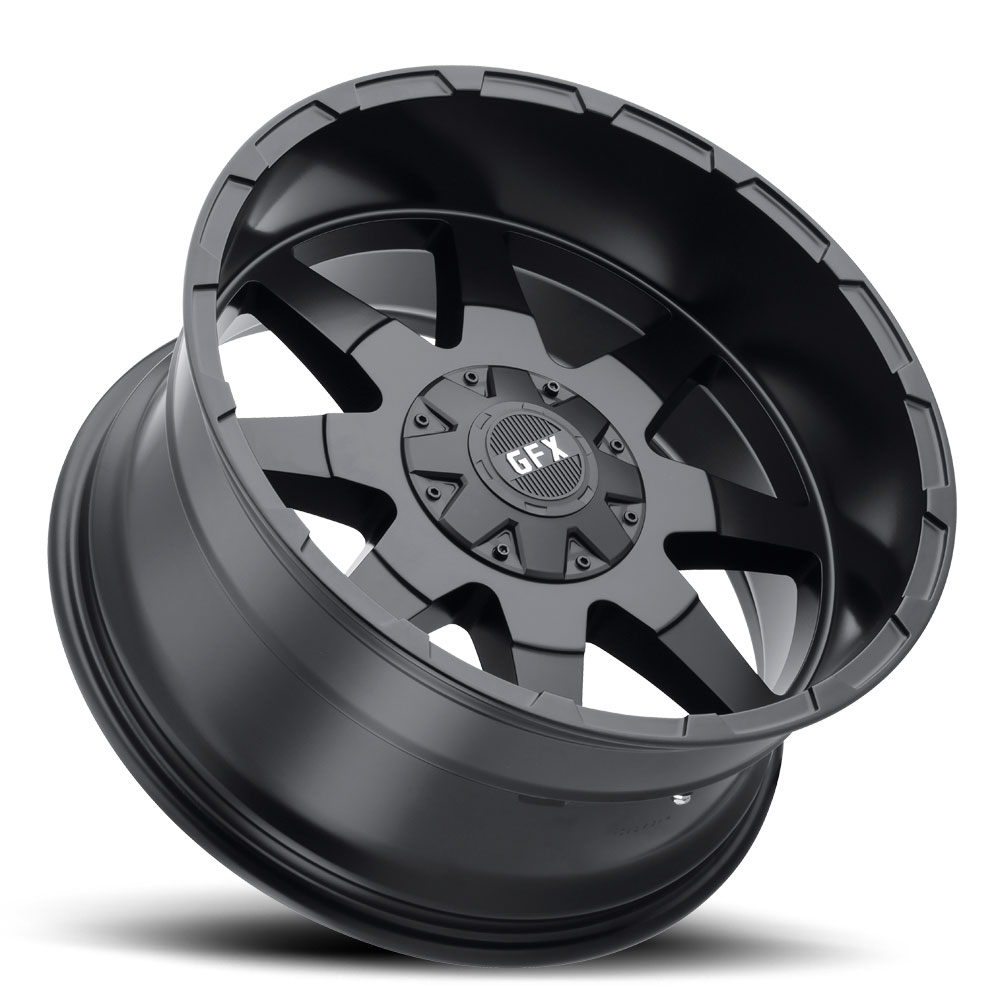

TR12
Sizes: 17x9, 18x9, 20x9, 20x10
Finish: Matte Black
The G-FX TR12 was built to handle real truck duty. Offered in five sizes with a wide range of fitments and offsets, this wheel is engineered with an elevated load rating specifically for full-size 8-lug trucks. It features two-piece caps for easy access to manual locking hubs, so capability never takes a back seat to style.
Check Fitment
Request a Quote
-
17″ Specifications
Part Number Size BP 1 BP 2 Offset Bore Weight Finish T12 790-5008-12 MB 17x9 5x114.3 5x127 12 73.1 28 Matte Black T12 790-5009-00 MB 17x9 5x127 5x139.7 0 78.3 28 Matte Black T12 790-5019-12 MB 17x9 5x135 5x139.7 12 108 28 Matte Black T12 790-6009-00 MB 17x9 6x135 6x139.7 0 87.1 28 Matte Black T12 790-6009-12 MB 17x9 6x135 6x139.7 12 87.1 28 Matte Black T12 790-8165-12 MB 17x9 8x165.1 12 125.2 28 Matte Black -
18″ Specifications
Part Number Size BP 1 BP 2 Offset Bore Weight Finish T12 890-5008-12 MB 18x9 5x114.3 5x127 12 73.1 34 Matte Black T12 890-5009-00 MB 18x9 5x127 5x139.7 0 78.3 34 Matte Black T12 890-5015-18 MB 18x9 5x139.7 5x150 18 110.2 34 Matte Black T12 890-6009-00 MB 18x9 6x135 6x139.7 0 87.1 34 Matte Black T12 890-6009-12 MB 18x9 6x135 6x139.7 12 87.1 34 Matte Black T12 890-8165-12 MB 18x9 8x165.1 12 125.2 34 Matte Black T12 890-8170-12 MB 18x9 8x170 12 125.2 34 Matte Black T12 890-8180-12 MB 18x9 8x180 12 124.2 34 Matte Black -
20″ Specifications
Part Number Size BP 1 BP 2 Offset Bore Weight Finish T12 290-5008-12 MB 20x9 5x114.3 5x127 12 73.1 35 Matte Black T12 290-5015-18 MB 20x9 5x139.7 5x150 18 110.2 35 Matte Black T12 290-6009-00 MB 20x9 6x135 6x139.7 0 87.1 35 Matte Black T12 290-6009-12 MB 20x9 6x135 6x139.7 12 87.1 35 Matte Black T12 290-8165-00 MB 20x9 8x165.1 0 125.2 35 Matte Black T12 290-8165-12 MB 20x9 8x165.1 12 125.2 35 Matte Black T12 290-8170-12 MB 20x9 8x170 12 125.2 35 Matte Black T12 290-8180-12 MB 20x9 8x180 12 124.2 35 Matte Black T12 210-6009-24 MB 20x10 6x135 6x139.7 -24 87.1 36 Matte Black
