TR31

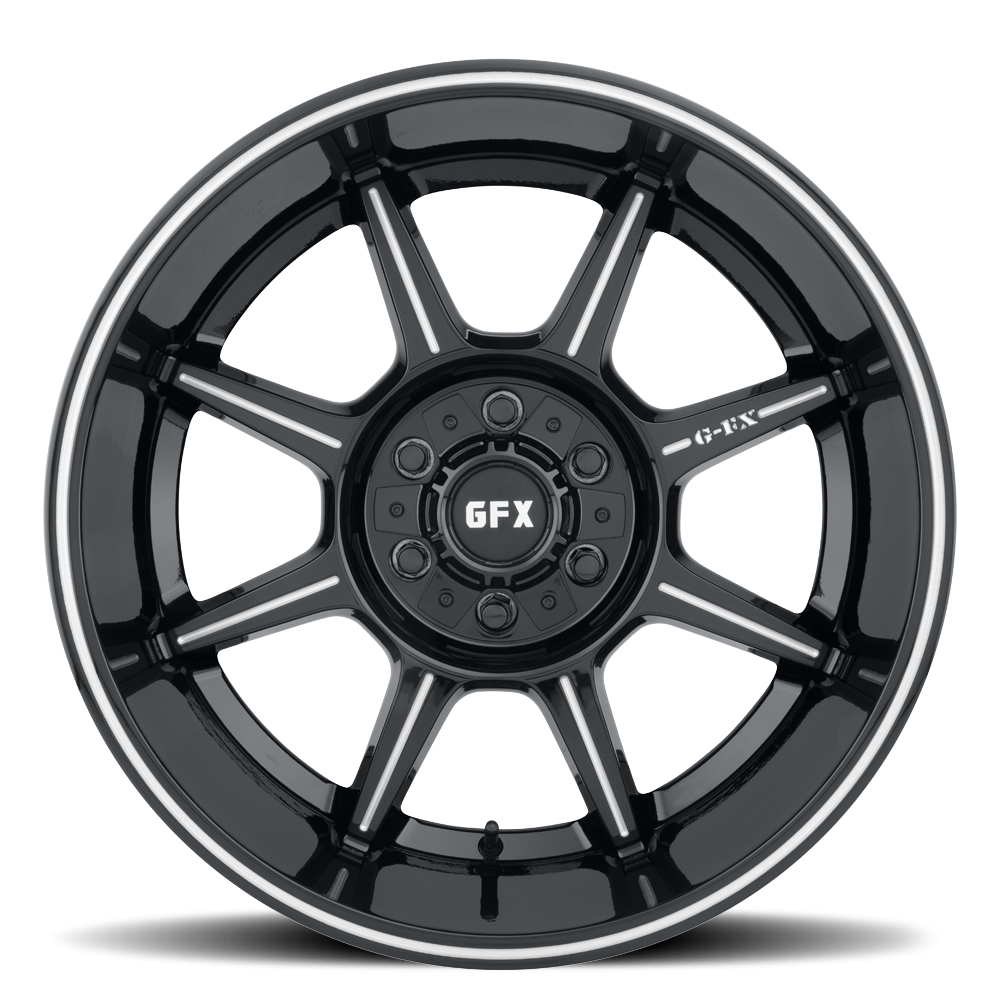

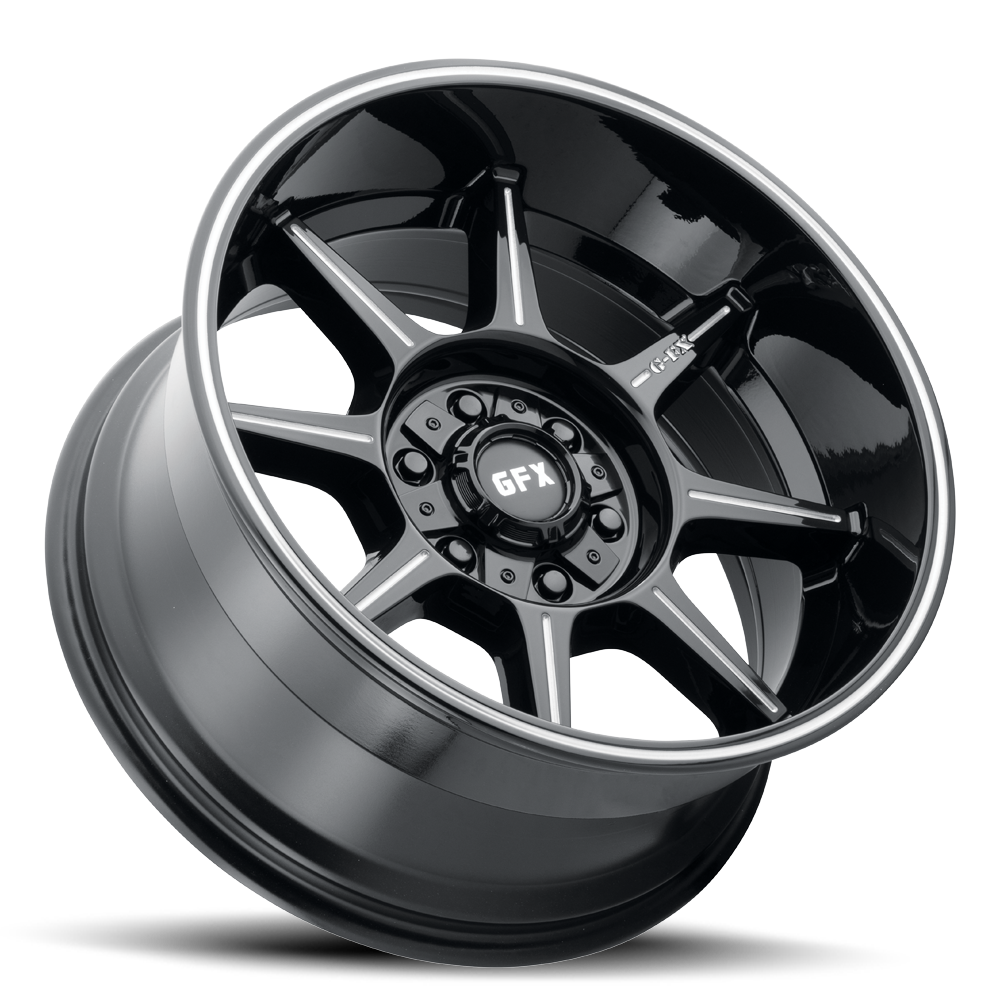

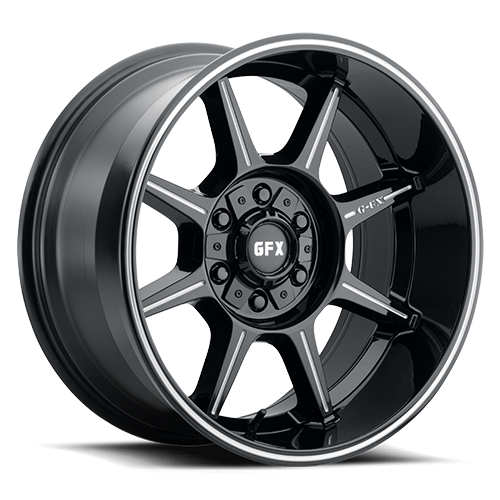

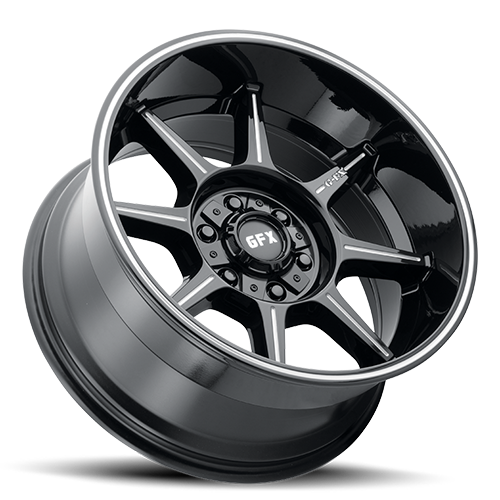

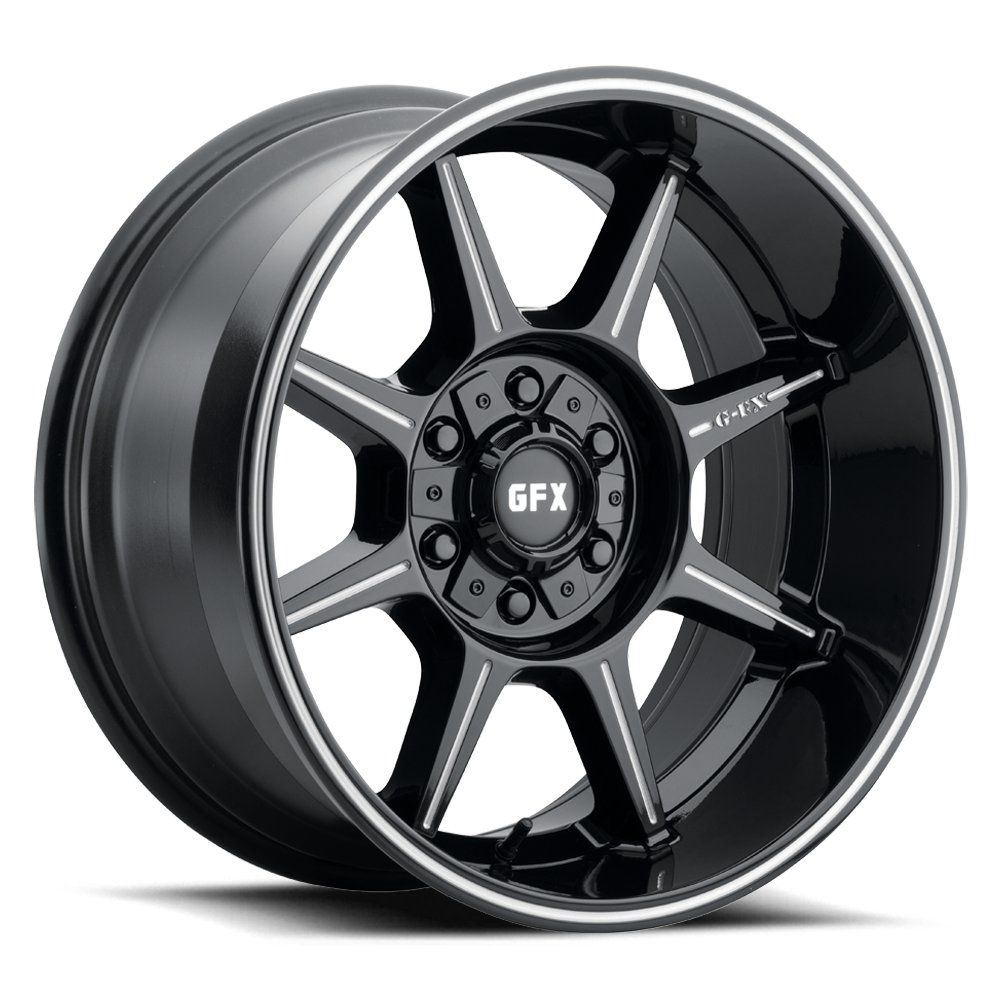

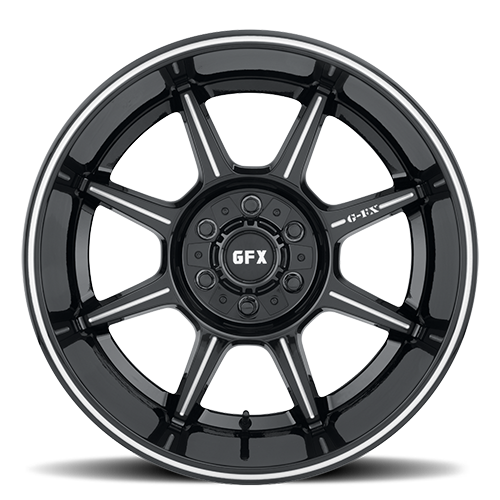

The G-FX TR31 features eight long, tapered spokes that extend from a recessed center section to the outer edge of the wheel. Its open spoke layout and smooth, deep lip give the TR31 a straightforward truck-wheel design without simulated beadlock hardware or an overly complicated face.
The wheel’s depth changes depending on the width and offset, with lower-offset applications producing a more pronounced lip. A debossed G-FX logo appears on one spoke, while the bolt-on center cap completes the center section. The center-cap design is adapted to the lug configuration, giving the 6-lug and 8-lug versions a consistent appearance despite their different hub sizes.
The TR31 is available in 17x9, 18x9, 20x9, and 20x10 sizes. Fitments cover select 5-lug, 6-lug, and 8-lug truck and SUV applications, allowing the same eight-spoke design to work across light-duty and heavy-duty platforms.
*Patent Pending
Check Fitment
Request a Quote
-
17″ Specifications
Part Number Size BP 1 BP 2 Offset Bore Weight Finish T31 790-6009-18 GBM 17x9 6x135 6x139.7 18 95.2 0 Gloss Black Milled T31 790-8165-18 GBM 17x9 8x165.1 18 125.2 0 Gloss Black Milled -
18″ Specifications
Part Number Size BP 1 BP 2 Offset Bore Weight Finish T31 890-5009-18 GBM 18x9 5x127 5x139.7 18 78.3 0 Gloss Black Milled T31 890-6009-18 GBM 18x9 6x135 6x139.7 18 95.2 0 Gloss Black Milled T31 890-8165-18 GBM 18x9 8x165.1 18 125.2 0 Gloss Black Milled T31 890-8170-18 GBM 18x9 8x170 18 125.2 0 Gloss Black Milled T31 890-8180-18 GBM 18x9 8x180 18 124.2 0 Gloss Black Milled -
20″ Specifications
Part Number Size BP 1 BP 2 Offset Bore Weight Finish T31 290-6009-18 GBM 20x9 6x135 6x139.7 18 95.2 0 Gloss Black Milled T31 290-8165-18 GBM 20x9 8x165.1 18 125.2 0 Gloss Black Milled T31 290-8170-18 GBM 20x9 8x170 18 125.2 0 Gloss Black Milled T31 290-8180-18 GBM 20x9 8x180 18 124.2 0 Gloss Black Milled T31 210-6009N19 GBM 20x10 6x135 6x139.7 -19 95.2 0 Gloss Black Milled T31 210-8165N19 GBM 20x10 8x165.1 -19 125.2 0 Gloss Black Milled
